Protocol Management

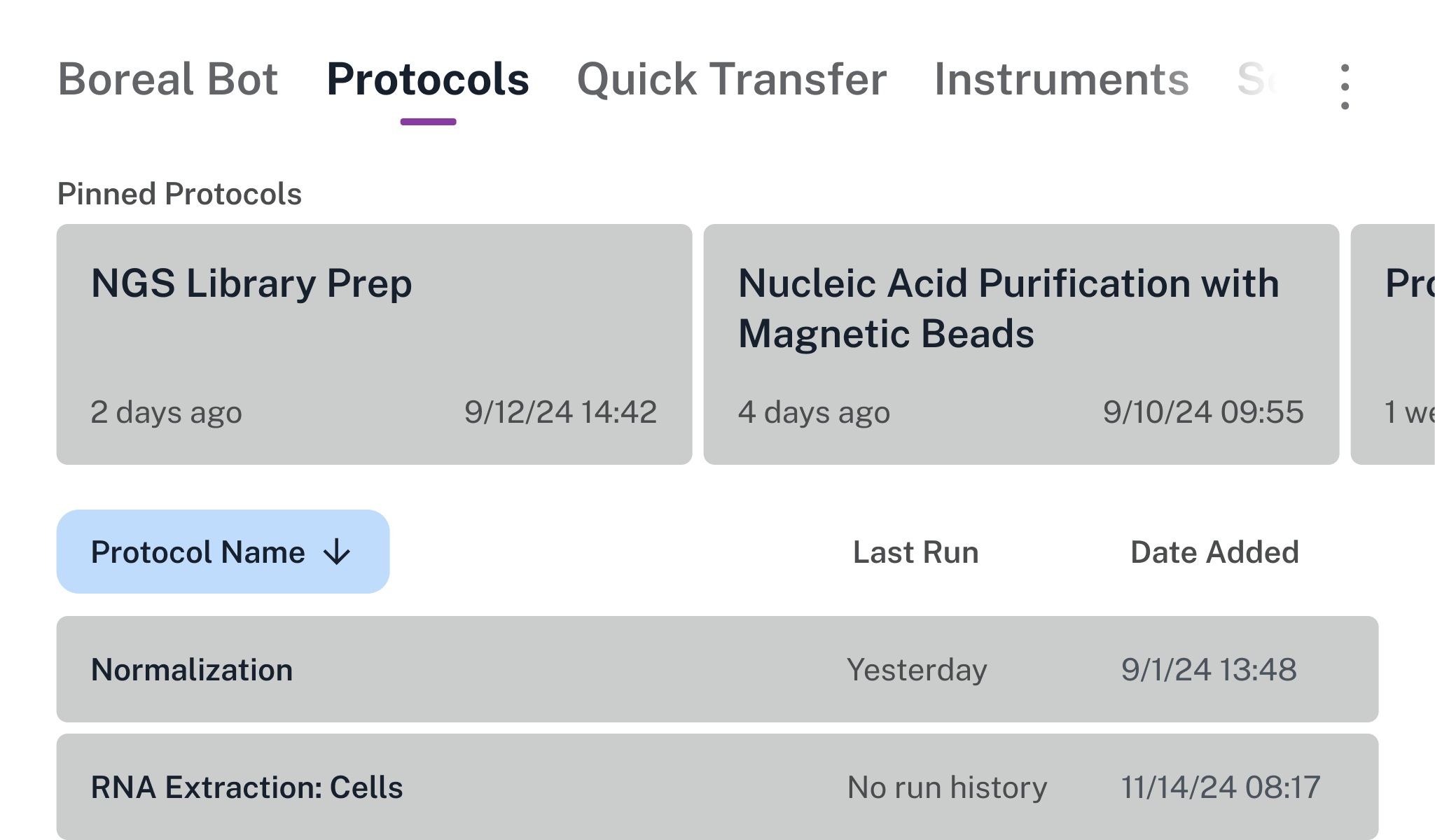

The All Protocols screen is an interactive list of all protocols that you've stored on Opentrons Flex. (Sending a protocol to Flex requires the Opentrons App. See the Transferring Protocols to Flex section for details on that process.)

There are two sections of the All Protocols screen:

• Pinned protocols: Large cards in a horizontal carousel at the top of the screen.

• Other protocols: A vertical list at the bottom of the screen.

Regardless of which section a protocol is in, its card or list entry includes information about when it was last run and when it was added to this robot.

Note

Flex can store a maximum of 20 unique protocols. It automatically deletes older protocols to maintain this limit. Use the Opentrons App if you need to manage a larger number of protocols.

Pin a protocol

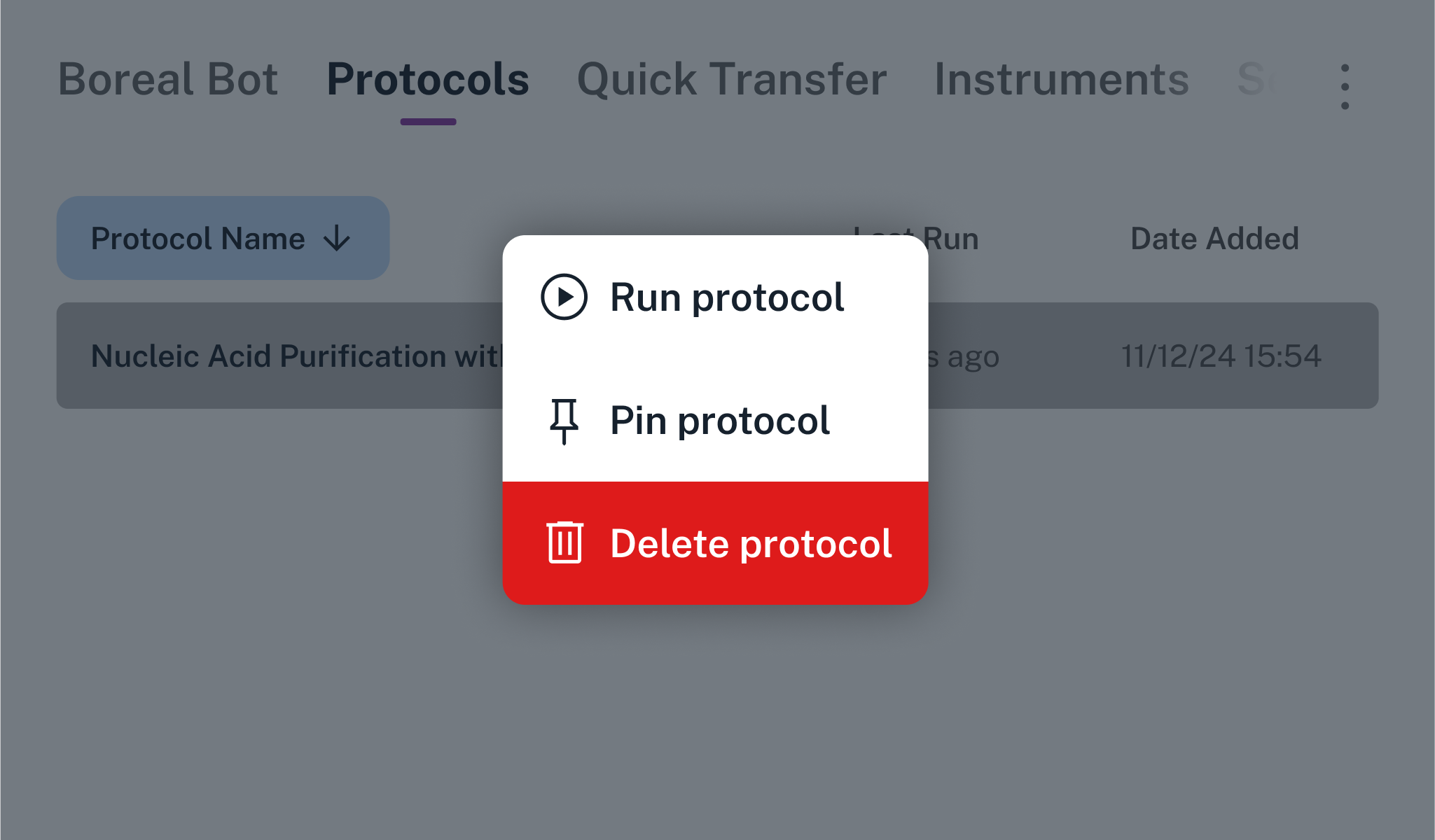

Long press on a protocol and tap Pin protocol to move it to the pinned protocols section. Conversely, long press a pinned protocol and tap Unpin protocol to remove it from the section.

You can pin up to eight protocols. When you hit the maximum, you'll need to unpin a protocol before pinning another one.

Sort protocols

Tap any of the three headers — Protocol Name, Last Run, or Date Added — to sort the All Protocols section.

Tap once to sort protocols in ascending order (A to Z for names, oldest to newest for dates). Tap again to reverse the sort order. The current sort criterion is highlighted in blue and the current sort order is indicated by an upward or downward arrow.

Delete a protocol

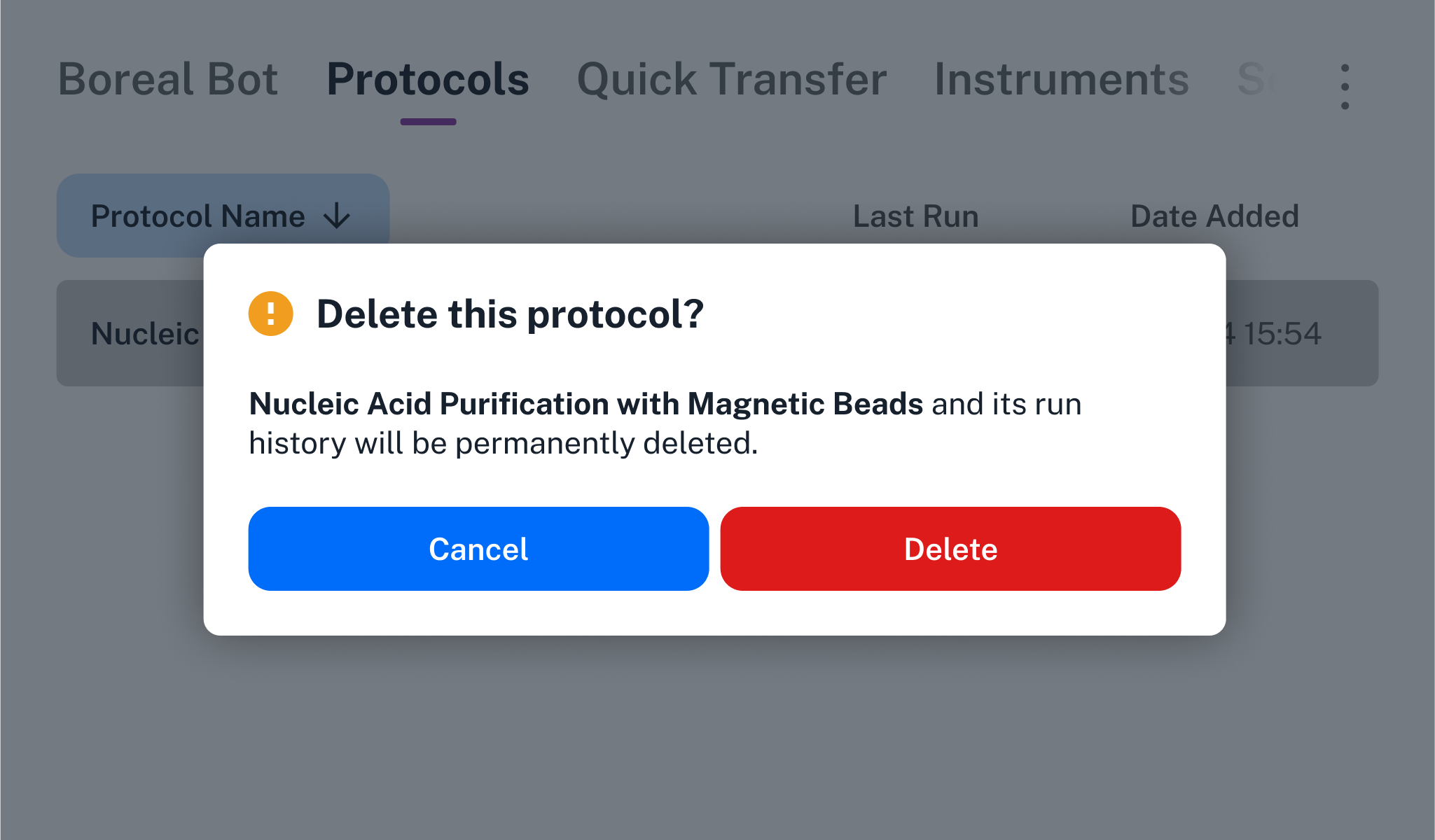

Long press on a protocol and tap Delete protocol to delete it directly from the All Protocols screen. Flex will prompt you for confirmation that you want to delete the protocol file and all of its run history.

Warning

Run history is not recoverable after you delete a protocol on Flex. The protocol file itself is also not recoverable, although you may be able to resend the protocol to Flex if you've kept a copy of it on a computer.
